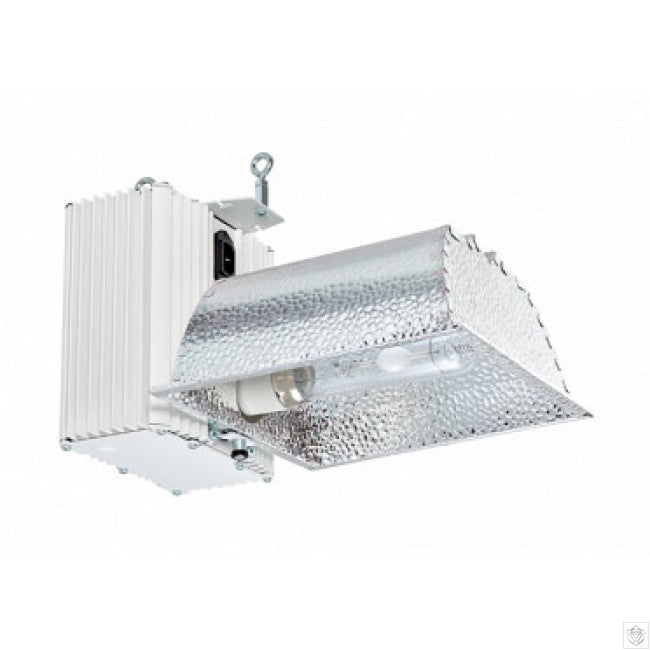

Gavita Pro 315e SE CMH Fixture
The Gavita Pro 315e SE is available with the Philips 315W 3000 Kelvin lamps (for flowering) or 4200 Kelvin lamps (for vegetative or supplemental use). It is a compact fixture with a new type of reflector mounting system: Instead of a bracket which holds the reflector on both sides, the reflector is now clipped on the ballast housing itself. This reduces size and weight, enables easy replacement and provides optimal positioning and stability of the small reflector.
Suitable for Gavita Master Controllers
Our CMH ballasts ballasts can be remote controlled by our Gavita Master Controllers. CMH lamps can not be dimmed without deterioration of the light maintenance over time, and restart problems. However, the Repeater Bus interface enables timing control and safety features with the Gavita Master controller. With this you can also integrate the fixture as a supplement light to a HPS layout.
Ideal for fixed installation
Ideal for fixed installation with brackets on Unistrut (C profile) systems, the Repeater Bus cabling system allows you to daisy-chain the fixtures in your installation. A Repeater Bus interconnect cable is included with every fixture. You can connect 5 strings of 100 fixtures per Master controller port. This enables you to control up to 1000 fixtures on one EL2 controller.
Available with 930 Agro or 942 lamp
We recommend the 4200° Kelvin CDM Elite 942 for supplemental light and vegetative cycles. The 3000°Kelvin CDM Elite Agro 930 Agro is most suitable for generative cycles and stand-alone use. The 930 Agro has added red light in the spectrum which results in higher efficiency.
The integration of ballast and reflector results in a compact fixture. No external lamp wires result in low EMI, which makes the fixture compliant with FCC regulations. All CMH fixtures are FCC tested and compliant.
No moving parts, optimal thermal management
Our ballasts are completely sealed and passively cooled through the aluminum housing. The optimized thermal management keeps the electronics much cooler than in die-cast housings. This extremely important for the lifetime and reliability of the internal electronics.
The fixture is balanced, so it can be mounted by just two hanging points. This enables easy installation by brackets from C-profiles for example.
- Input voltage: 240V
- Input current at 100%: 1.4 Amps
- Input power at 100%: 330 Watt
- Light source: Philips CDM 930 Agro or 942
- Reflector: M 140 SE CDM 315
- Lamp base: PGZX18
