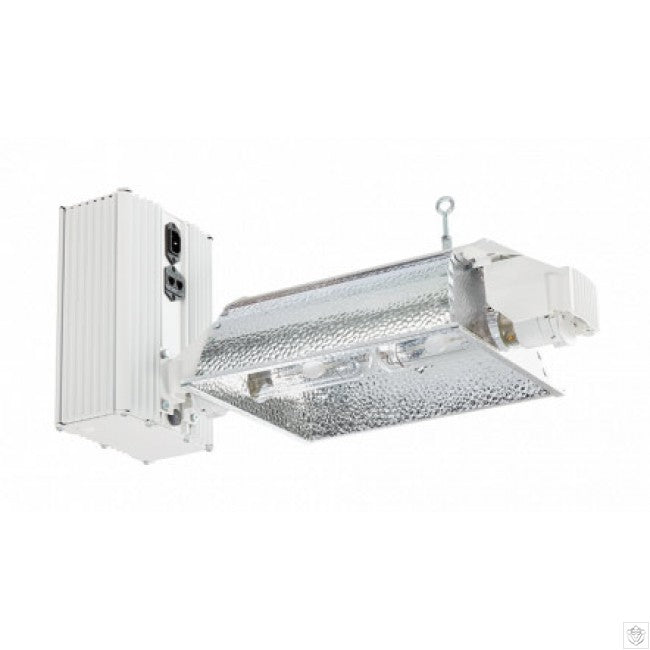

Gavita Pro 630e SE CMH Fixture
The Gavita Pro 630e SE is available with the Philips 315W 3000 Kelvin lamps (for flowering) or 4200 Kelvin lamps (for vegetative or supplemental use). The Repeater Bus interface enables external control with the Gavita Master controllers.
Suitable for Gavita Master Controllers
Our CMH ballasts ballasts can be remote controlled by our Gavita Master Controllers. CMH lamps can not be dimmed without deterioration of the light maintenance over time, and restart problems. However, the CMH fixtures are equipped with a Repeater Bus connection so they can be integrated in a HPS solution and use the Master controller timing control and safety features.
Available with 930 Agro or 942 lamp
We recommend the 4200° Kelvin CDM Elite 942 for supplemental light and vegetative cycles. The 3000°Kelvin CDM Elite Agro 930 Agro is most suitable for generative cycles and stand-alone use. The CDM Elite Agro has added red light in the spectrum for extra efficiency.
No moving parts, optimal thermal management
Our ballasts are completely sealed and passively cooled through the aluminum housing. The optimized thermal management keeps the electronics much cooler than in die-cast housings. This extremely important for the lifetime and reliability of the internal electronics.
Repeater bus interface
Developed specifically for fixed installation with brackets on Unistrut (C profile) systems, the Repeater Bus cabling system allows you to daisy-chain the fixtures in your installation. A Repeater Bus interconnect cable is included with every fixture. You can connect 5 strings of 100 fixtures per Master controller port. This enables you to control up to 1000 fixtures on one EL2 controller.
The fixture is balanced, so it can be mounted by just two hanging points. This enables much easier installation by brackets from C-profiles for example.
- Input voltage: 240V
- Input current at 100%: 2.5 Amps
- Input power at 100%: 660 Watt
- Light source: Philips CDM 930 Agro or 942
- Reflector: M 132 SE CDM 630
- Lamp base: PGZX18
